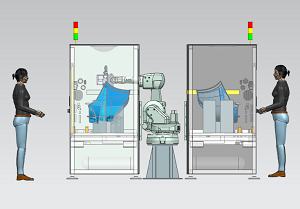

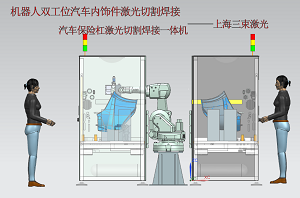

This equipment is a multi-functional, dual-station, laser plastic welding and cutting machine that can be compatible with various products specially developed for plastic molds. The equipment has its own automatic file selection and processing function, and the programming operation is simple. Used in car dashboards, car doors, car interior parts, car bumpers, other complex special-shaped cutting, etc.
Customer Service Hotline
Fax ：+86-021-57891301
Tel ：+86-15901891893
1. The equipment is a device with a cutting and welding machine, which greatly reduces the input cost.
2. At the same time as being compatible with cutting welding machines, it is also compatible with problems such as file extraction encountered by different products during processing. This device supports the automatic file retrieval function.
3. Equipment has 24-hour continuous work.
4. Equipment support production statistics report can support docking MES.
|
設備型號/Model |
SCW-2000（可定制/Customizable） |
|
激光功率/laser power |
200/400W&1000W（可選/Optional） |
|
激光波長/Wavelength |
650~2000nm |
|
焊接方式/Welding method |
準同步焊接（可定制整形光斑）/ Quasi-synchronous welding (customized shaping spot) |
|
控制方式/control mode |
西門子PLC&PC軟件/SIEMENS PLC&PC |
|
機器人品牌/Robot Brand |
ABB/發那科或主流機器人可選(optional) |
|
機器人運動臂展/ |
1600/2000可選(optional) |
|
是否可多工位/Is it possible to have multiple jobs？ |
支持可選(optional) |
|
治具是否可以快速更換/Can fixtures be quickly replaced? |
支持/可定制Support/customizability |
|
是否可以自動切換調取工件軌跡文件/Whether the workpiece trajectory file can be automatically switched/ |
支持/可定制Support/customizability |
|
切割焊接速度/Cutting and welding speed |
Cut80~100mm/s&Welding2000mm/s |
|
運動范圍/Range of motion |
±120°*1600mm（可定制/Customizable） |
|
是否具備吸塵/Is there a vacuum cleaner? |
支持Support |
|
焊接工位/Welding station |
單工位/雙工位（可選）/Single station / double station (optional) |
|
上下料方式/Feeding mode |
手動或自動/Manual/automatic |
|
工作溫度/working temperature |
溫度：10℃~35℃濕度:5%~85%要求設備應用環境通風無塵/Temperature: 10 ~35， |
|
冷卻方式/Cooling method |
風冷＜100W激光功率＜水冷（根據光源）&1000w風冷/Air cooling＜100W＜water cooling (according to light source)&1000w AIR COOLING |
|
電力需求/Power demand |
三相/Single-phase：AC380（±10%）/50~60Hz、35A |
|
總功率/Total power |
＜5500W |
|
整機重量/Weight |
2000Kg |
|
